Paper machine 5300 mm printing + liner
PM Grafisches- / Verpackungspapier
1 Units
Technische Daten:
Maschine:
Paper machine 5300 mm printing + liner
Artikel-Nr.:
4066
Größe:
5300 mm
Kapazität:
600 t/day
Beschreibung:

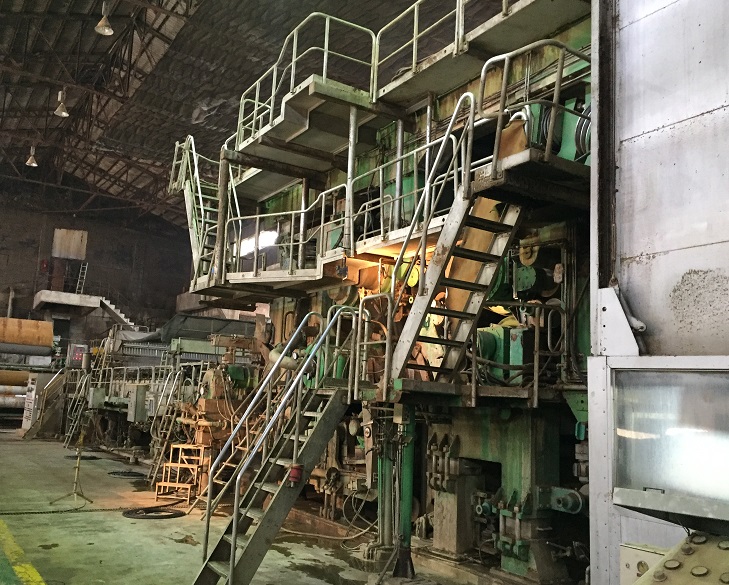

5300mm paper mill
Make:JAPAN
Start-up:1980
Paper Grade: Printing & Writing Paper/Liner /Kraft
Paper Grade: Printing & Writing Paper/Liner /Kraft
Basis Weight (gsm):45~120
Operation speed:1,100m/min
1. PAPER MACHINE
Wire Width:5,300mm
Reel Web Width:4,800mm
Reel Web Width:4,800mm
(Head Box)
Hydraulic Type (Converflo)
Slice Width: 5,150mm
(Wire) (PF Gap):twin wire type
Rebuild of Forming Zone by Johnson Foils in 2004
(Press)
Tri-Nip
Replaced of Center Roll (Ceramic Cover) by Metso in 2005
Replaced of Steam Box by Honeywell in 2003
(Dryer)
4 Group (42 Cylinder)
1-2 Single / 3-4 Double
Installation of Web Stabilizer by EV Group in 2007 Stationary Syphon
1-2 Single / 3-4 Double
Installation of Web Stabilizer by EV Group in 2007 Stationary Syphon
Rebuild by Deublin in 2006)
(Calender)
SNC - 1 Stack / 1 Nip
Rebuild by Metso in 2003
Reel:Pope
2. WINDER
Type:Two-Drum
Speed: 2,300m/min
Rebuild by MHI in 2003
Replaced of Slitting Station by APE in 2006
Type:Two-Drum
Speed: 2,300m/min
Rebuild by MHI in 2003
Replaced of Slitting Station by APE in 2006
3.DRIVE
Sectional, DC Motor (Toshiba:JAPAN)
Speed-Up in 2005, 2007
4.VACUUM
Water Ring
5.CONTROL SYSTEM
QCS:Davinci
Changed of Scanner by Honeywell in 2003 Basis Weight, Moisture, Caliper,
Hole Detector: New Installation by Isravision in 2006
Hole Detector: New Installation by Isravision in 2006
6.POWER SOURCE
3300V / 440V
3300V / 440V
* Gelistet seit: 2018-11-11
